NetWay4E1BTB

4-port Hardened 4PPoE (802.3bt) Switch

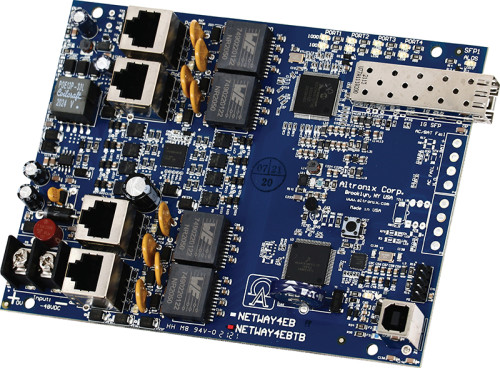

Altronix NetWay4E1BTB switch board supports up to 90W per port (320W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with one (1) 1Gb SFP port to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWay4E1BTB accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors.

Specifications

  • Input
    • Voltage: 48V-57V (UL Listed ITE power supply)
  • Output
    • Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power).
    • IEEE 802.3af, 802.3at, 802.3bt compliant.
  • SFP Ports
    • One (1) Gigabit SFP port.
  • Ethernet Ports
    • Four (4) 10/100/1000 Mbps ports.
    • Connectivity: RJ45, auto-crossover.
    • Wire type: 4-pair CAT5e or higher structured cable.
    • Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
  • Indicators (LED)
    • Individual PoE On LEDs for each port.
    • Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port.
    • ALOS LED indicates fiber connection for SFP port.
    • Heartbeat LED indicates proper operation of the unit.
  • Temperature
    • Operating (240W): –30ºC to 55ºC (–22ºF to 131ºF).
    • Operating (180W): -30ºC to 65ºC (-22ºF to 149ºF).
    • Operating (150W): -30ºC to 75ºC (-22ºF to 167ºF).
    • Storage: -30ºC to 85ºC (-22ºF to 185ºF).
    • Relative Humidity: 85% +/-5%.
  • Operating Altitude
    • - 304.8 to 2,000m.
  • Mounting hardware is included

    Agency Listings


    CE Compliant

    Accessories

    Name Description
    P1MM Small Form-Factor Pluggable (SFP) Multi-Mode Transceiver
    P1SM10 Small Form-Factor Pluggable (SFP) Single Mode Transceiver
    P1AB2K Small Form-Factor Pluggable (SFP) Single-Mode Transceiver Kit
    P1GCE Small Form-Factor Pluggable (SFP) Copper Transceiver
    NetWaySP4PX 4-port Fiber Optic Transceivers with Built-In Power Supply/Charger for conventional Fiber or composite cable (fiber+copper) Application; 120W per port (480W total)
    NetWaySP1A PoE Powered Ethernet to Fiber Media Converter/Repeater.
    POE240 56VDC/240W Power Supply/Charger Board.
    POE360 54VDC/360W Power Supply/Charger Board
    POE367 360W/277V Input Power Supply/Charger Board

    Similar Products

    Name Description
    NetWay4E1BTX 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger, NEMA1 rated Indoor enclosure
    NetWay4E1BTWPX 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
    NetWay4E1BTWPN 4-port Hardened 802.3bt 4PPoE Switch (uses external power supply). - NEMA4/4X, IP66 rated Outdoor enclosure.
    NetWay4E1BTWP 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger - NEMA4/4X, IP66 rated Outdoor enclosure.
    NetWay4E1BTPL 4-port Hardened 802.3bt 4PPoE Switch and Power Supply/Charger; Backplane version.

    Dimensions & Weight

    Dimensions (approximate):
    • 1.25"W x 6.25"L x 4.5"H (31.8 mm W x 158.8 mm L x 114.3 mm H).
    Weights (approximate):
    • Product Weigtht: 0.7 Lbs. (0.8 kg).
    • Shipping Weigtht: 0.32 Lbs. (0.36 kg).
